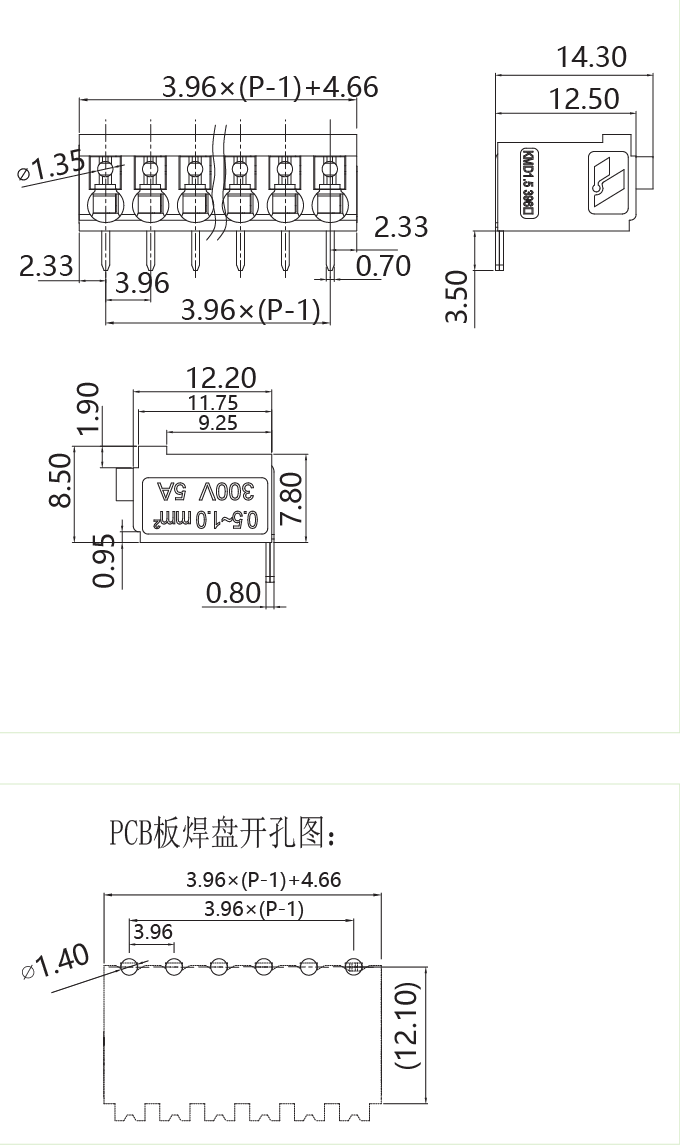

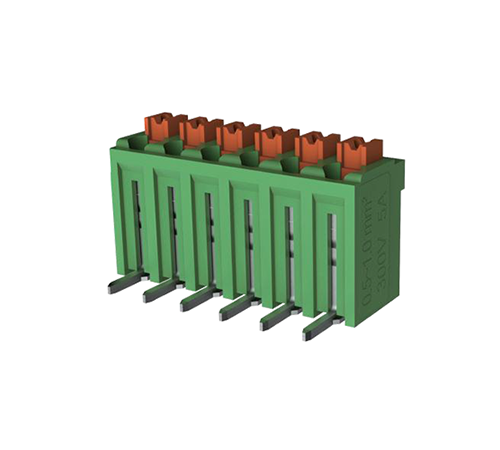

Fixed screw-free terminal blockME-HMK-508-07
| Approval |
|
| Category | Fixed screw-free terminal block |
| Model | KMD1.5-396 |
| Pitch | 3.96mm |
| Poles | 03P~06P |
| Color | Green |
| Pitch[mm] | 3.96 |
| PCB hole diameter[mm] | 1.0 |
| Pin dimensions[mm]x[mm] | 0.4x0.7 |
| Technical data in accordance with IEC/DIN and VDE | |
| Insulation materialgroup | III |
| Surge voltagecategory/contamination class | III/2 |
| Rated voltage/Nominal current[V]/[A] | 300/5 |
| Surge voltage[kV] | 4.0 |
| Withstanding voltage/Current breakdown[VAC/min]/[A/S] | 2500/30 |
| Insulation Resistance[MΩ] | ≥500 |
| Capacity connection | |
| Cross section[mm²] | 0.08-1.5 |
| Stripping length[mm] | 8 |
| Internal cylindrical gauge(IEC 60 947-1) | A1 |
| Insulating material | PBT+GF |
| Inflammability class in acc.with UL 94 | V0 |
| Fixing screws | |
| for header with threaded flange，header must be screwed before soldering |
