Pluggable screw-free connectorsD1STF-508-32
| Approval |
|
| Category | Pluggable screw-free connectors |

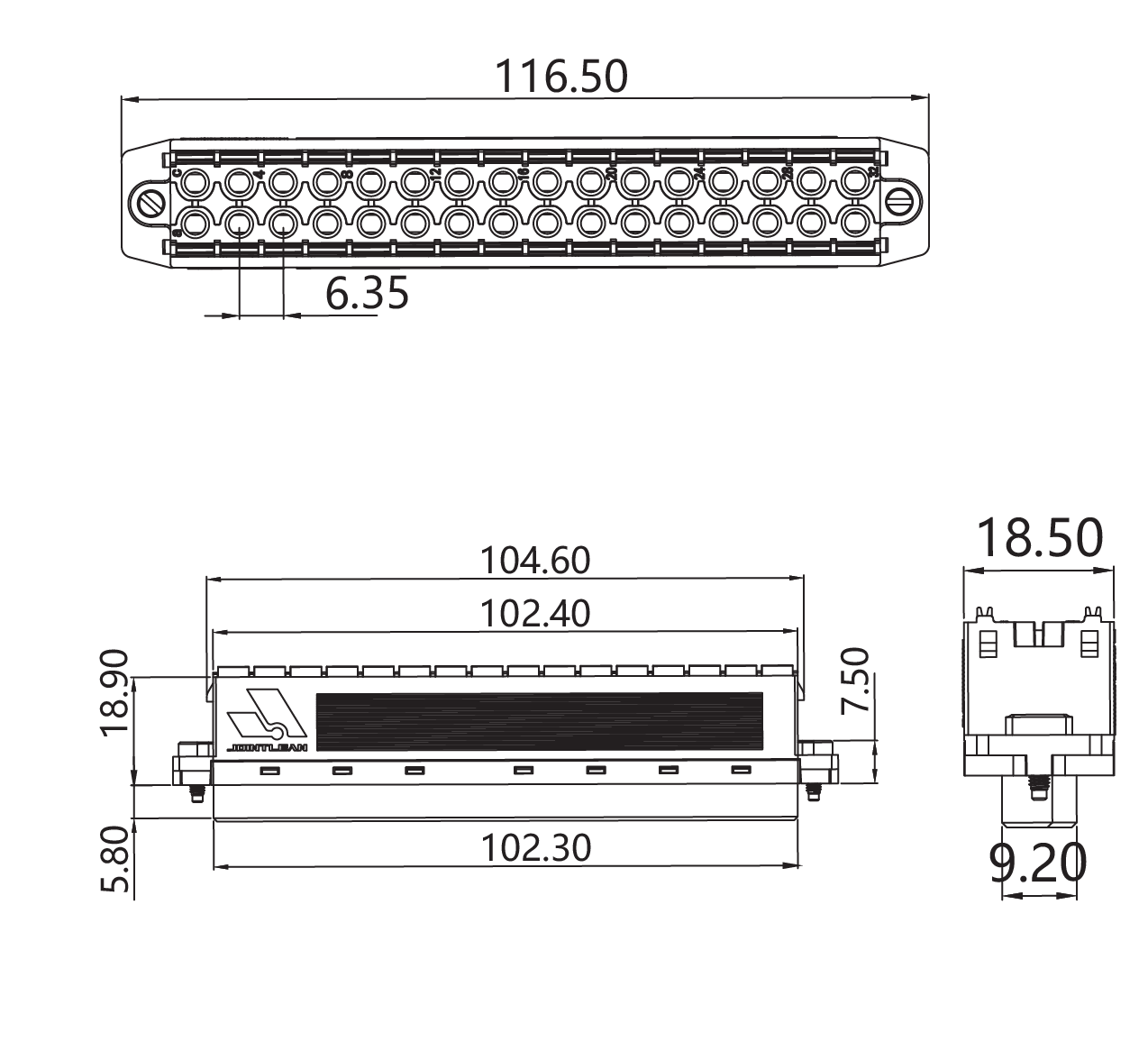

| Model | D2KPGF-635-32P |
| Pitch | 6.35mm |
| Poles | 32P |
| Product application | Suitable for 4U case |
| Pitch[mm] | 6.35 |
| PCB hole diameter[mm] | |
| Pin dimensions[mm]x[mm] | |
| Technical data in accordance with IEC/DIN and VDE | |
| Rated voltage/Nominal current[V]/[A] | 250/6 |
| Surge voltage[kV] | 5.0 |
| Withstanding voltage/Current breakdown[VAC/min]/[A/S] | 2500/500 |
| Insulation Resistance/contact Resistance[MΩ]/[mΩ] | ≥500/≤20 |
| Capacity connection | |
| Cross section[mm²] | 1-1.5 |
| Outside connection | No handling of wires |
| Stripping length[mm] | 12 |
| Insulating material | PBT+GF |
| Inflammability class in acc.with UL 94 | V0 |
| Specification of flange thread | M2.5x6.5 |
| Fixing screws | |
| for header with threaded flange，header must be screwed before soldering |
Joinect provides samples for user experience
